Hardware of other manufacturers

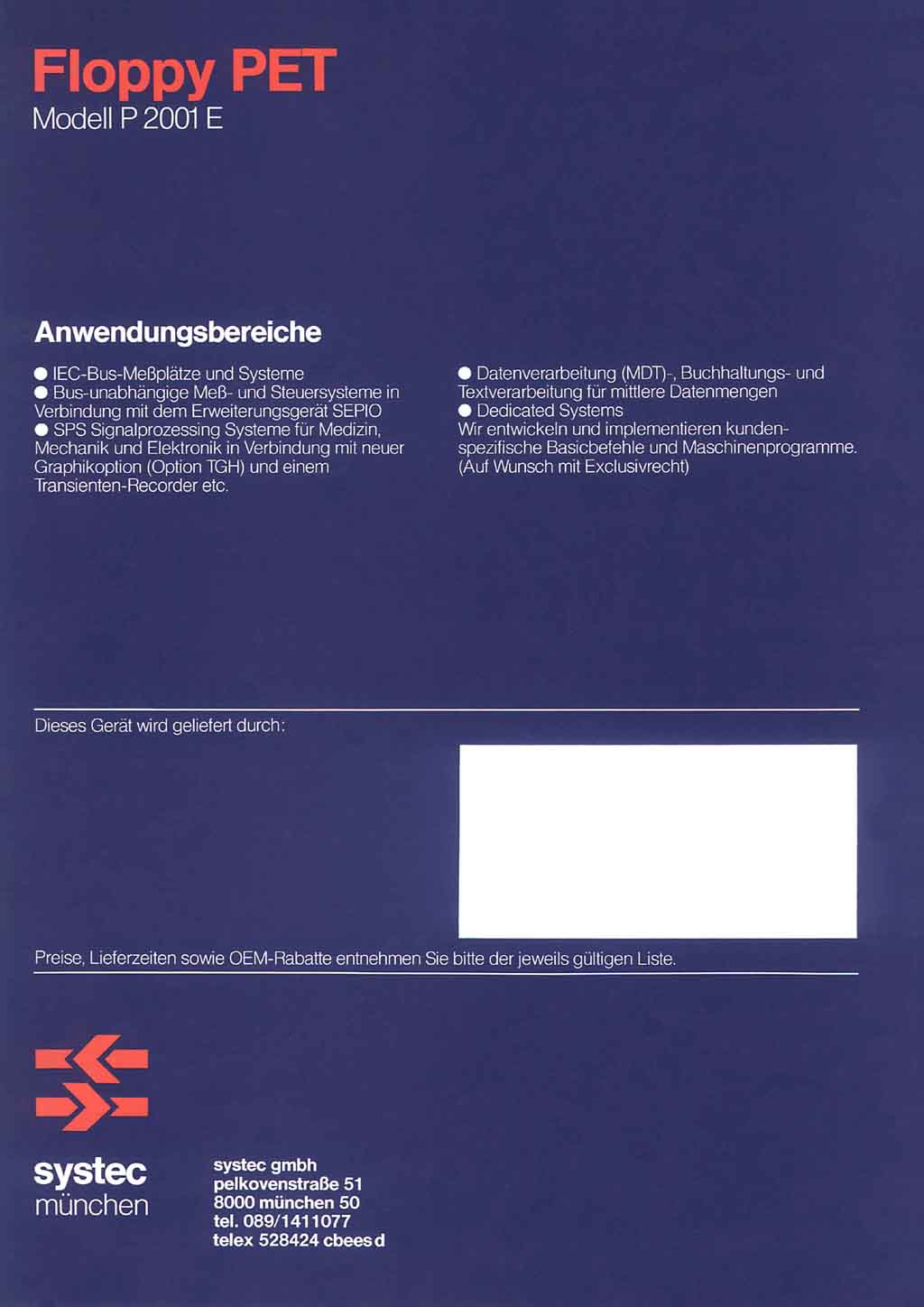

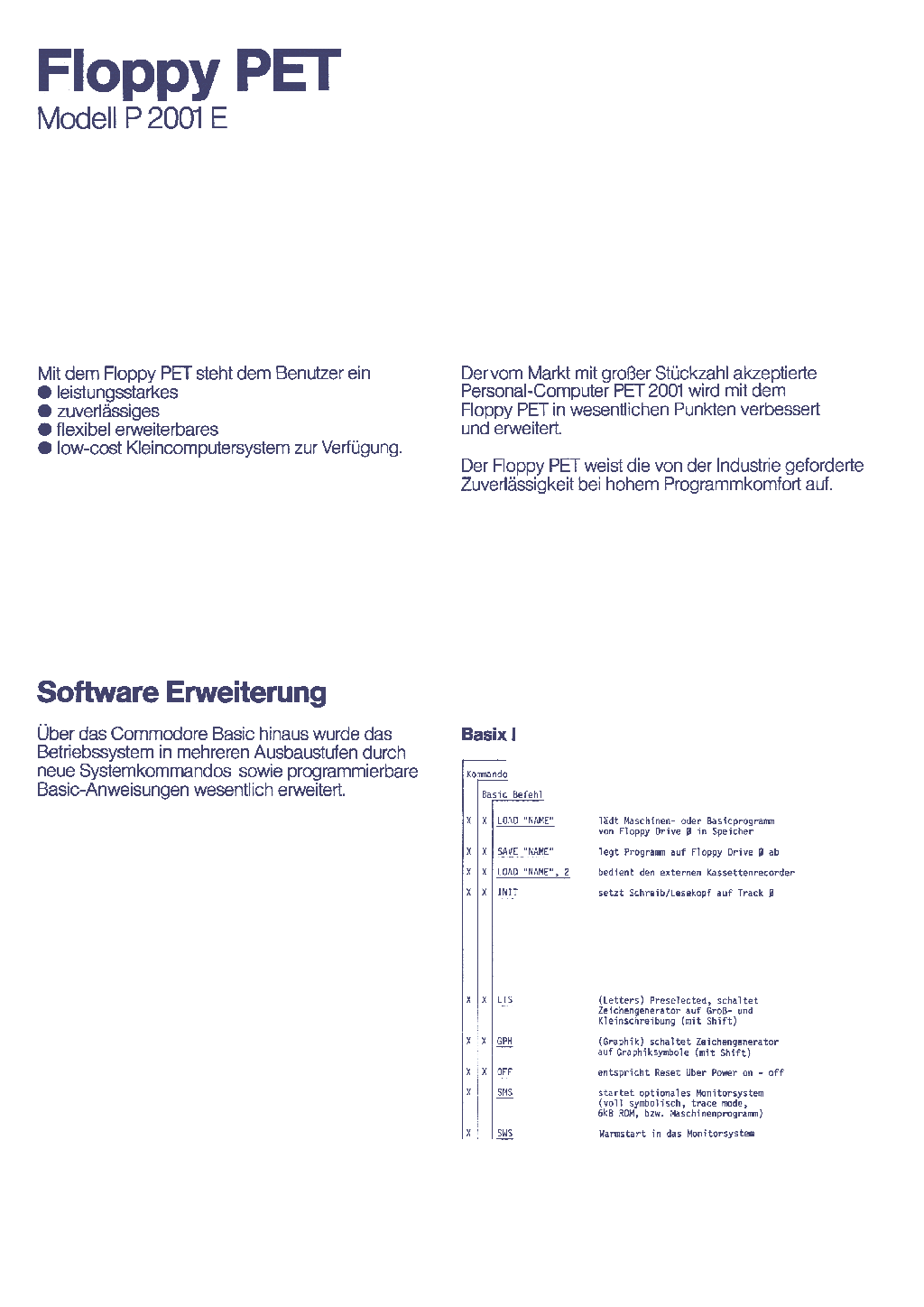

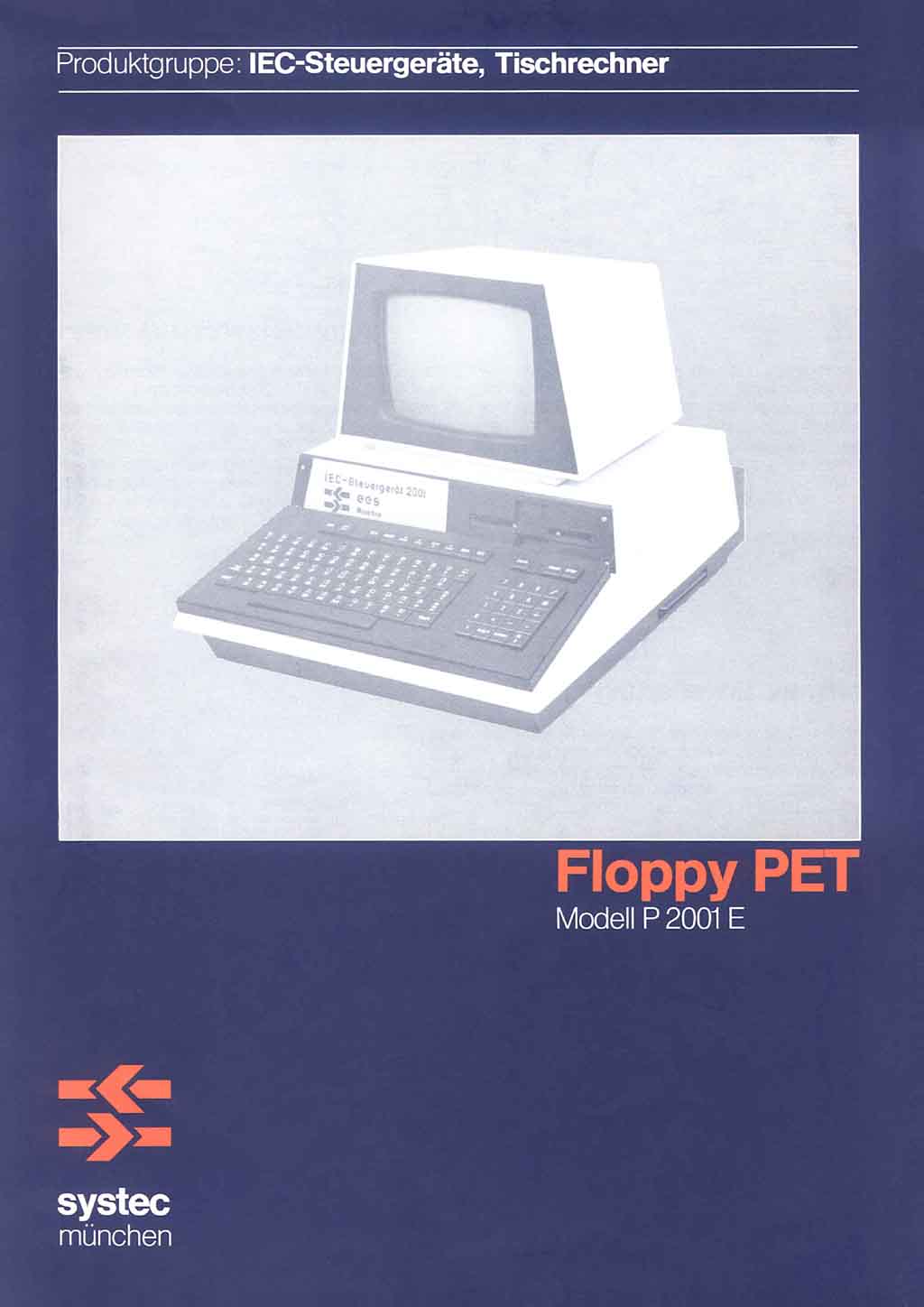

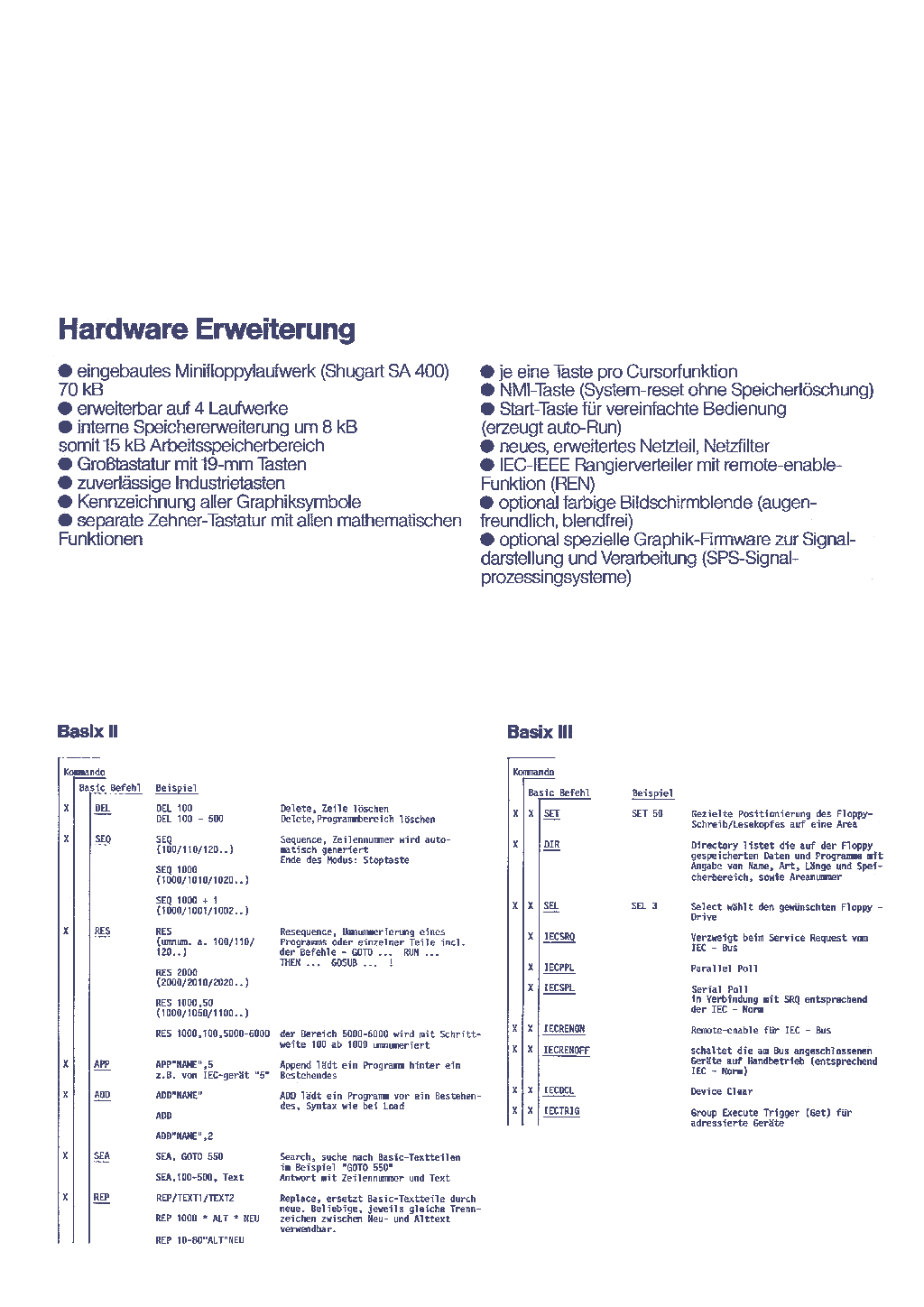

Here you see a PET2001 as a conversion made by "Systec" (Munich) with enlarged keyboard, integrated floppy drive and seperated! cursor-keys. Mark the "gigantic" memory capacity of the disk drive (Page 3)!
![Please Click to enlarge the picture](werbung/k2001101.jpg) |
![Please Click to enlarge the picture](werbung/k2001102.jpg) |
![Please Click to enlarge the picture](werbung/k2001103.jpg) |
![Please Click to enlarge the picture](werbung/k2001104.jpg) |
Page 1 |
Page 2 |
Page 3 |
Page 4 |

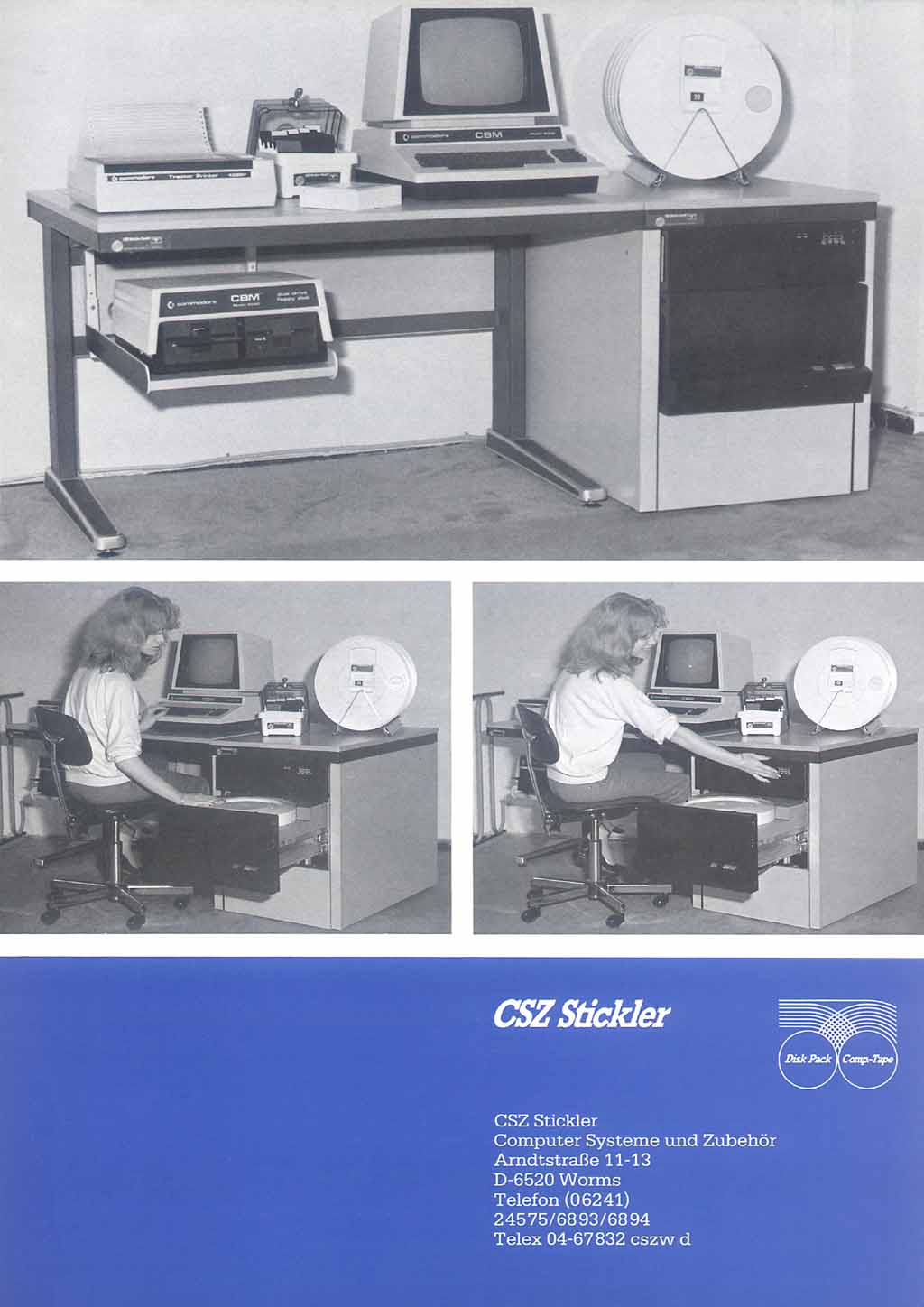

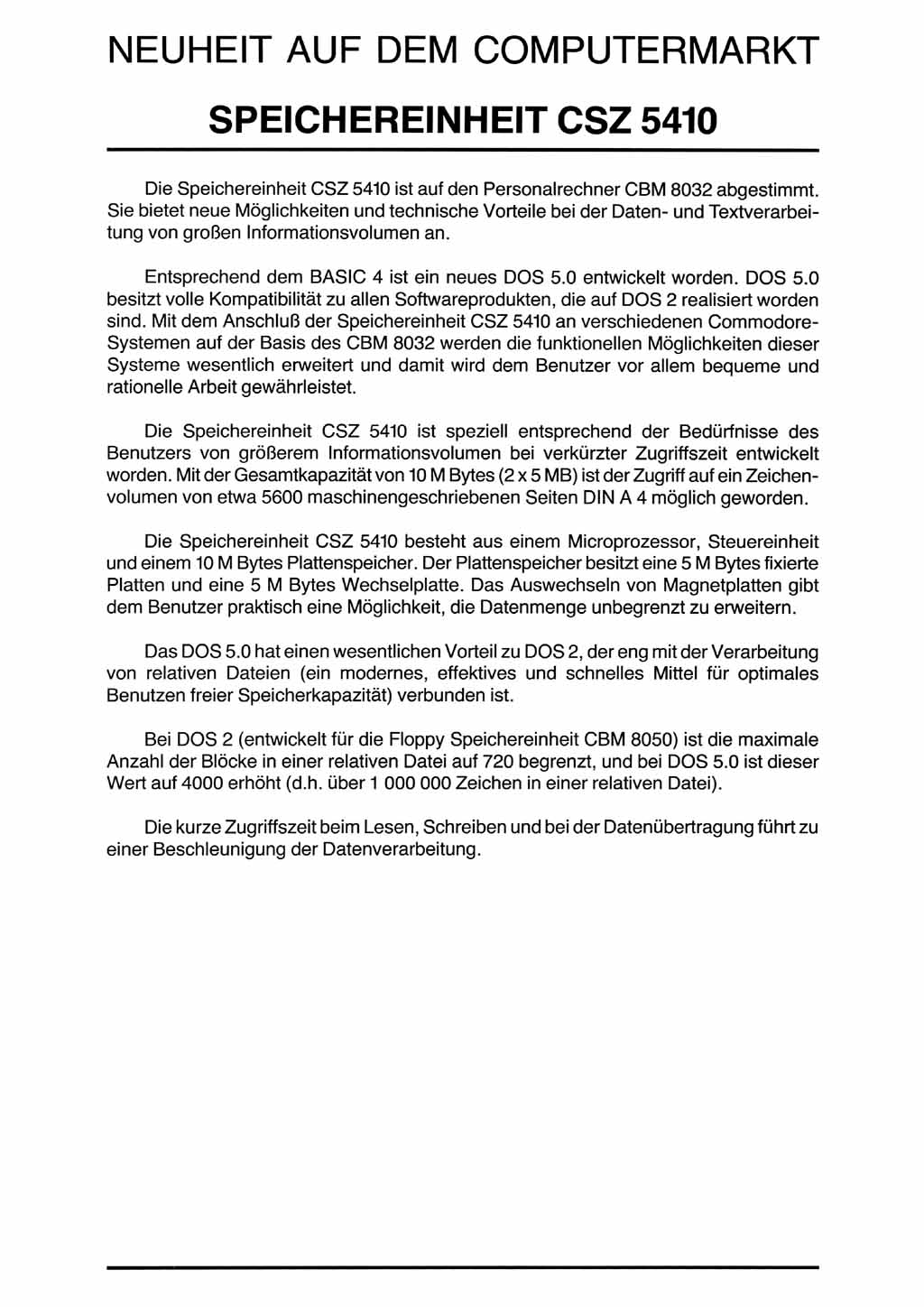

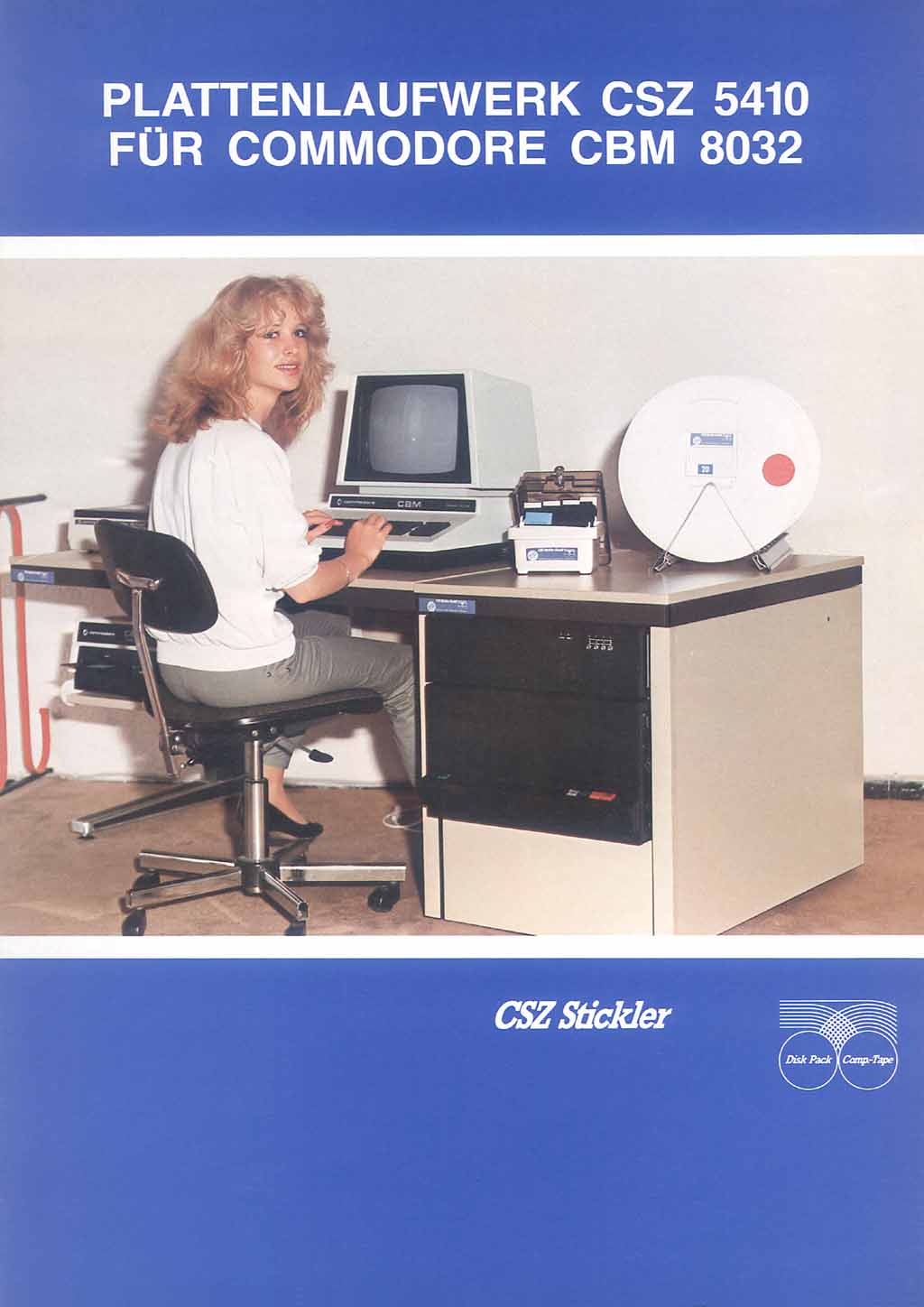

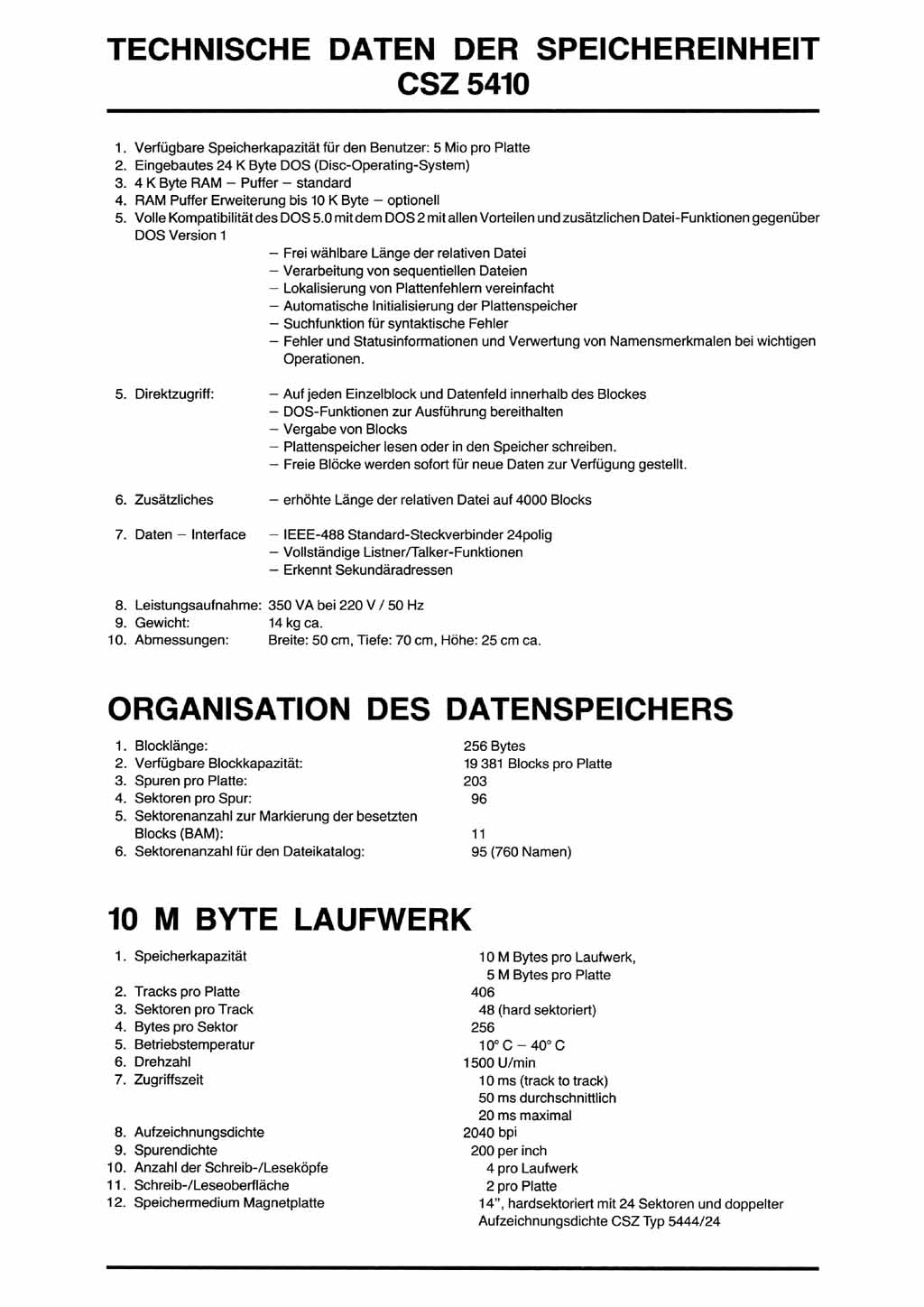

The manufacturer "CSZ Stickler" from Worms/Germany introduces a substitutionable hard-disk-system for the CBM8000-Series. It consists of a firmly installed disk with a size of 5 MB which can be expanded with substitutionable disks of the same capacity. Each of this magnetic disks has a diameter of 14"! At the same time Commodore offers the hard-disk-units CBM D9060/9090. They are installed in the housing of the single-floppy-drive CBM2031 HP and have a capacity up to 7,5 MB!
![Please Click to enlarge the picture](werbung/kplatt01.jpg) |
![Please Click to enlarge the picture](werbung/kplatt02.jpg) |
![Please Click to enlarge the picture](werbung/kplatt03.jpg) |
![Please Click to enlarge the picture](werbung/kplatt04.jpg) |
Page 1 |
Page 2 |
Page 3 |
Page 4 |
